EBC Brake Discs, upgrade, TJ, XJ

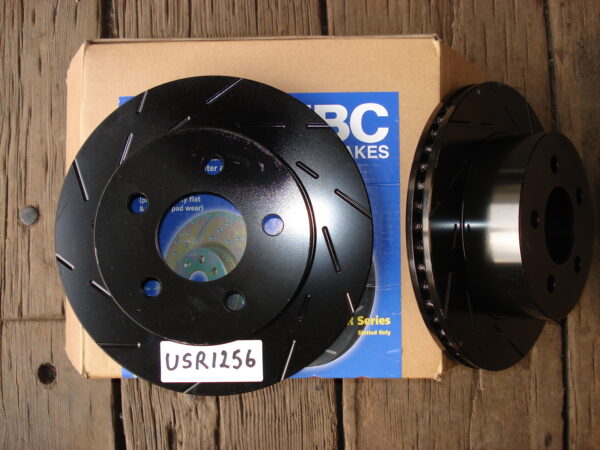

These USR series slotted brake discs have wide aperture 4mm full sweep slots to help cool the brake disc & pad plus promote parallel wear on the pad & avoid ridges during the disc lifetime. The slots help degassing of the pads & remove dirt, dust & debris from the braking area. The discs have a EPF heat applied paint giving maximum rust protection for thousands of miles & is totally heat & salt spray resistant which destroys most ordinary coatings. For further technical information click on our EBC info page accessed via the grey header at the top of the page.
All EBC brake discs are precision machined to the finest tolerences & are considered a premium quality disc better than many OEM discs being sold. The material used in disc castings is a grey iron to specification JH32A (equivalent to USA G3000) & includes a 1.5% copper added in the second melt during the casting process to comprise their unique material ‘discalloy’. Discalloy gives a more thermally stable cast iron.They are machined on high precision ‘tower’ milling machines guaranteeing a thinkness & run-out variarion below 0.001″ (0.025mm).
In-line with good mechanical engineering practice, all EBC brake discs are sold & to be replaced in pairs.
See our Green Stuff 6000 4×4 series/SUV & Yellow Stuff brake pad upgrades for use with these brake discs. Fits the FRONT of the following Wrangler TJ models;
2.5 97-2001
4.0 97-2006

Also for the late Cherokee XJ’s

Product Code: EBCUSR1256
